Enclosures

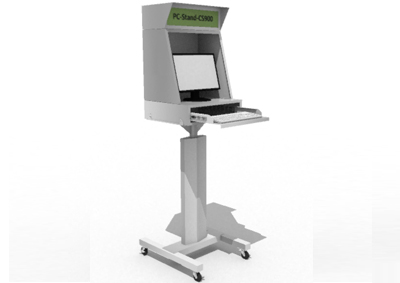

Enclosure Image

PC Stand System : CS Series
Model No.
CS-90600-01

PDF Download

Product description

  • Material:
  • PC stand & base: Sheet Steel, Steel SQ & Round Tube, Caster
  • Keyboard drawer & enclosure: Sheet Steel, Powder-Coated, textured paint
  • Monitor housing: Sheet Steel, Powder-Coated, textured paint
  • Sign box: Sheet Steel & poly-carbonate, Powder-Coated, textured paint
  • Surface Finish:
  • PC stand & base: Powder-Coated on the outside, textured paint
  • Mounting Plate: Zinc-plated
  • Mounting Board: Powder-Coated, textured paint
  • Color: ANSI 70
  • Protection category IP: IP66
  • Protection category NEMA: NEMA 4X
  • Approval: UL & UL508a
  • Accessories:

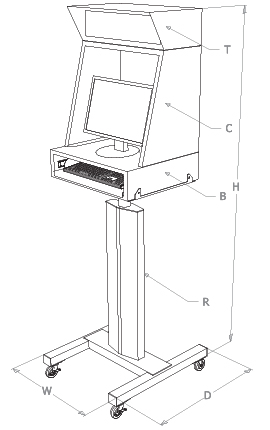

Product description Plan Image

Product description
Model No. Width (mm) Height (mm) Depth (mm) Doors (ea)
CS-90600-01 600 1750 700 4
CS-90600-02 600 1600 700 4
CS-90600-03 600 1100 700 4
CS-90600-04 600 950 700 4
CS-901200-01 1200 1750 700 4
CS-901200-02 1200 1600 700 4
CS-901200-03 1200 1100 700 4
CS-901200-04 1200 950 700 4
