Enclosures

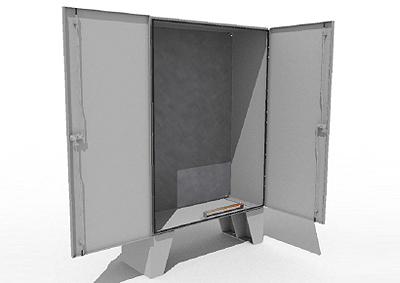

Enclosure Image

PC Enclosure System : LB Series
Large Enclosures
Model No.
LB-50900-01

PDF Download

Product description

  • Material:
  • Enclosure & Door: Sheet Steel, E or U Type rubber seal
  • Surface Finish:
  • Enclosure & Door: Powder-Coated on the outside, textured paint
  • Mounting Plate: Zinc-plated
  • Mounting Board: Powder-Coated, textured paint
  • Color: ANSI 70
  • Protection category IP: IP66
  • Protection category NEMA: NEMA 4X
  • Approval: UL & UL508a
  • Accessories:

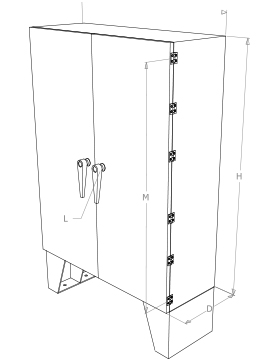

Product description Plan Image

Product description
Model No. Width (mm) Height (mm) Depth (mm) Doors (ea)
LB-50900-01 900 1000 300 2
LB-50900-02 900 1000 450 2
LB-501000-01 1000 1000 300 2
LB-501000-02 1000 1000 450 2
LB-501200-01 1200 1200 450 2
LB-501200-02 1200 1200 600 2
LB-501200-03 1200 1400 600 2
LB-501200-04 1200 1400 700 2
LB-501500-01 1500 1500 700 2
LB-501500-02 1500 1800 700 2
